Stratus

No matter the industry, companies are under unprecedented pressure to optimize business performance and efficiency. Automation and modernization are key – and downtime or lack of security are not an option. You work in an “Always On World.”

Stratus solutions collect and analyze data at the source – the Edge of your core business processes. Whether you manage an assembly line, an oil and gas pipeline, water treatment plant, a smart building process, or biotechnology and device organization, you need to turn data into actionable results. Far from the cloud or your data center, decisions and actions need to be made at the edge, in real time with the right information, in the right place. Stratus solutions and platforms are simple to install and implement, they operate autonomously with constant availability in rugged environments, and can protect your data, security, and reputation – at the Edge of your business. Stratus solutions are Simple, Protected, Autonomous.

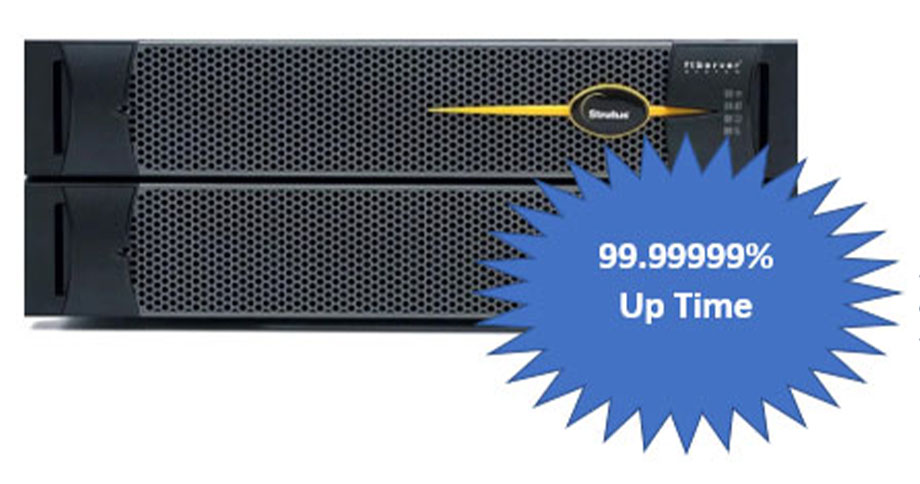

Stratus ftServer

Continuous availability made easy

Ensuring 5 Nines Uptime (99.99999%) of System Availability for Critical Applications Stratus Uptime Meter

Simple to deploy, simple to manage, simple to service

In today’s always-on global economy, seconds matter. Downtime in critical business applications can have far-reaching economic, security and legal consequences. Recovering from a failure, no matter how fast, is simply no longer an option. What companies need today is failure prevention, not failure recovery.

Stratus offers quick and easy failure prevention with ftServer. Conventional technologies like clustering and virtualization-based HA do not prevent downtime, but rely on recovering from hardware or software failures. And this recovery time can vary, from minutes to hours. Only ftServer prevents the downtime of your critical business applications, ensuring continuous availability, even when your underlying hardware components fail.

Stratus ftServer is a fully integrated, continuously available hardware and software solution for running tier 1 business critical workloads and manufacturing operations and control applications. Offering better than 5 nines availability, ftServer eliminates unplanned downtime and data loss, and ensures all transactions are processed and applications are available, helping companies maximize revenue, production quality, and productivity. Unlike other high availability solutions, ftServer is easy to deploy, manage and service, making it ideal for remote locations, or environments with IT resource constraints. A single, turnkey solution leverages industry standard components to deliver industry leading RAS, accelerating time to value, simplifying management, and lowering total cost of ownership.

Key Benefits

ftServer is a fully integrated continuously available platform that helps companies maximize revenue, quality, and productivity:

  • No unplanned downtime: Greater than 5 nines availability through redundant components, lockstep firmware, and data synchronization
  • No data corruption or data loss: All transactions processed because the system keeps operating despite component failure
  • Faster time to value: Easy to deploy and manage, with no ISV application modifications or failover scripts required
  • Increased operational efficiency: Self-monitoring, self-diagnosing, self-alerting systems save you time and effort

Automated Uptime Layer

Unique to Stratus, redundant field programmable gate arrays, data paths, and lockstep firmware provide the processor synchronization, data replication, and logic needed to ensure continuous availability, even in the event of a hardware component failure.

Single system with redundant hardware

Every single ftServer system is made up of two identical customer replaceable units (CRUs) – each with their own processors, memory, and storage. All redundant components and subsystems are packaged as a single system, reducing licensing costs and simplifying management.

Industry standard components

ftServer uses the same chipsets, DIMMs, and drives, as those found in other industry standard x86 systems. It also uses standard shrink-wrapped operating system and virtualization software, for ease of management and faster time to value.

Active Service Architecture

ftServer’s automated self-monitoring, alerting, self-diagnosing, and remediation capabilities are enabled by its Active Service Architecture. By simplifying ftServer monitoring and management, and by filtering issues which require action, Stratus saves companies time and effort.

Hot swappable customer replaceable units

ftServer is designed for serviceability, with hot swappable CRUs that can be removed without powering down the system, and replaced without using special tools. That and automatic data re-synchronization make ftServer suitable for deployment in remote manufacturing locations, or locations with limited IT resources.

ftServer models

ftServer is easy to deploy, easy to manage, and easy to service. Three different ftServer models meet most every enterprise workload, environment, and budget.

ftServer 2900

Affordability for stable, fixed standalone applications in remote offices, branch offices, or shop floor locations

ftServer 4900

Versatility for rapidly growing or evolving applications in regional offices, remote plants, or regional data centers

ftServer 6900

High performance for data-intensive or transaction-intensive applications in larger remote plants or corporate data centers




2900

4900

6900

Processors

Processor(s)

1 x Intel® Xeon® Silver 4114
processor 2.2 GHz

2 x Intel® Xeon® Silver 4114
processor 2.2 GHz

2 x Intel® Xeon® Gold 6127M
processor 2.2 GHz

Intel® Hyper-threaded Cores

10 per processor (10 per CRU)

10 per processor (20 per CRU)

16 per processor (32 per CRU)

Threads

20 per processor (20 per CRU)

20 per processor (40 per CRU)

32 per processor (64 per CRU)

Intel UPI speed

9.6 GT/s

9.6 GT/s

10.4 GT/s

Maximum memory bandwidth

76.8 GB/s

192 GB/s

192 GB/s

Memory

Min/max memory

16 GB / 128 GB DDR4

32 GB / 512 GB DDR4

64 GB / 640 GB DDR4

DIMM slots

16 (8 per CRU)

40 (20 per CRU)

40 (20 per CRU)

I/O Subsystem

Integrated PCIe® adapter slots

4 PCIe 3 x8
(2 per CRU)

4 PCIe 3 x8
(2 per CRU)

4 PCIe 3 x8
(2 per CRU)

Additional PCIe adapter slots

N/A

4 PCIe 3 x8 (optional)
(2 per CRU)

4 PCIe 3 x8 (included)
(2 per CRU)

Storage Subsystem

Internal system drive bays

12 Gb SAS 2.5″
(8 per CRU)

12 Gb SAS 2.5″
(8 per CRU)

12 Gb SAS 2.5″
(8 per CRU)

Internal SAS disk drives

Please visit www.stratus.com/ftserver/disks for a complete list of supported disk drives

ftScalable Storage Subsystem

Expansion drive slots (RAID)

Up to 144

Up to 144

Up to 144

RAID levels

1, 5, 6, 10

1, 5, 6, 10

1, 5, 6, 10

Drive types

Please visit www.stratus.com/ftserver/disks for a complete list of supported disk drives

Embedded I/O

10/100/1000 Ethernet ports

4 (2 per CRU)

4 (2 per CRU)

4 (2 per CRU)

10 Gb Ethernet ports

N/A

4 (2 per CRU)

4 (2 per CRU)

10/100 Management
Ethernet ports

2 (1 per CRU)

2 (1 per CRU)

2 (1 per CRU)

DVD-R/W

1

1

1

Serial (com) ports

2 (9-pin) ports per system

2 (9-pin) ports per system

2 (9-pin) ports per system

USB ports

4 USB 2.0 and 4 USB 3.0
(non-redundant)

4 USB 2.0 and 4 USB 3.0
(non-redundant)

4 USB 2.0 and 4 USB 3.0
(non-redundant)

Manageability

Baseboard management controller

Standard

Standard

Standard

Virtual Technician Module (VTM)

Standard

Standard

Standard

Graphics adapter

1 VGA port per system

1 VGA port per system

1 VGA port per system

PCI Adapters

1 Gb dual-port Ethernet

Up to 4 optional (2 per CRU)

Up to 4 optional (2 per CRU)

Up to 4 optional (2 per CRU)

10 Gb dual-port Ethernet server
adapter

N/A

Up to 4 optional (2 per CRU)

Up to 4 optional (2 per CRU)

12 Gb SAS 8-port host bus adapter
for tape

Up to 2 optional (non-redundant)

Up to 2 optional (non-redundant)

Up to 2 optional (non-redundant)

16 Gb Fibre Channel for external
storage

Up to 4 optional (2 per CRU)

Up to 4 optional (2 per CRU)

Up to 4 optional (2 per CRU)

Serviceability

Hot-swappable components

CPU / I/O module, disks

CPU / I/O module, disks

CPU / I/O module, disks

Operating System*

Microsoft

Windows Server 2016 with Hyper-V™ virtualization

Windows Server 2016 with Hyper-V™ virtualization

Windows Server 2016 with Hyper-V™ virtualization

VMware

vSphere 6.7

vSphere 6.7

vSphere 6.7

Red Hat

Red Hat Enterprise Linux 7.6

Red Hat Enterprise Linux 7.6

Red Hat Enterprise Linux 7.6

Power and Packaging

Input voltage

100-127, 200-240 VAC;
50 Hz, 60 Hz

100-127, 200-240 VAC;
50 Hz, 60 Hz

100-127, 200-240 VAC;
50 Hz, 60 Hz

System dimension (H x W x D)

7.0″ (4U) x 17.5″ x 30.1″
with bezel

7.0″ (4U) x 17.5″ x 30.1″
with bezel

7.0″ (4U) x 17.5″ x 30.1″
with bezel

Weight (fully loaded including rails)

54.43 kg (120 lbs.)

54.43 kg (120 lbs.)

54.43 kg (120 lbs.)

everRun

Customized Application Availability

Quickly transform your applications into continuously available solutions with customized application availability, accelerating time to revenue

everRun simplifies the process of meeting your changing availability requirements. A highly versatile, yet affordable continuously available software solution, everRun combined with industry standard x86 systems quickly and easily protects your virtualized workloads and data. Use everRun to rapidly and cost effectively deliver the levels of continuous availability you need, when and where you need them.

Key Benefits

Select the levels of availability that maximize your revenue, safety, and return on investment:

Customize your availability environment

Easily adjust the availability level of each VM to meet your changing requirements and SLAs.

Protect your corporate data

Eliminate data corruption and data loss. Software-based checkpointing protects both replicated and in-flight data.

Accelerate time to value

Quickly implement both highly available and continuously available platforms with no application modifications.

Ensure business continuity

Replicate applications and data at multiple metro area sites to protect against building-wide disaster.

For more on EverRun
