Spectra Logic

Spectra Logic

Spectra Logic has been focused on innovation in storage systems and solutions for 40 years. Spectra launched its first tape library in 1995, and since that time, has built the most rugged, reliable tape systems in the industry.

Tape Storage.

A tape drive is a data storage device which stores data on magnetic tapes. Magnetic tapes – tape media - are majorly uses as offline, archiving data and stored on shelves to store data for long life period. These tape media make data storage favorably less cost and have good stability for longer storage.

Though data being recorded is increasing at very fast year on year, to store this huge amount of data, tape media is being chosen for its long life and less cost per byte of cost of storage.

Tape storage is low cost, secure & safe, optimal for long term storage and high-capacity media are available now like LTO 9 which holds 18TB per tape cartridge.

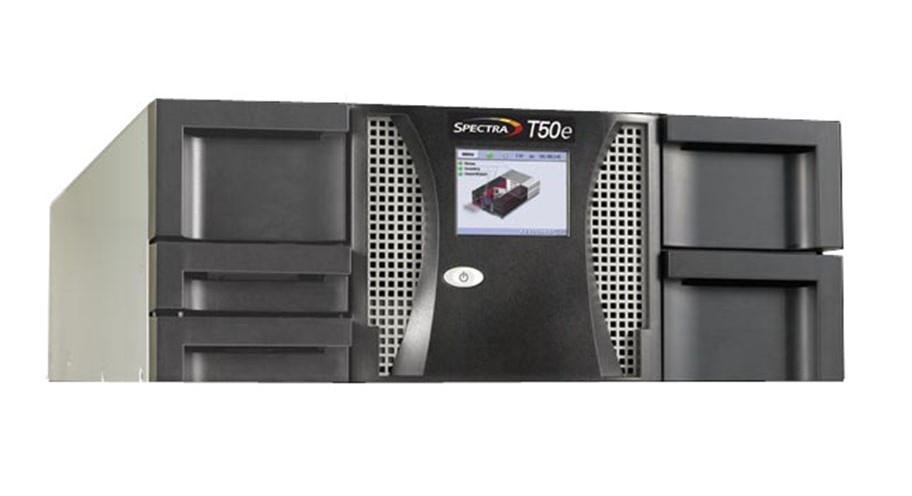

Spectra T50e

The Most Powerful Small Tape Library

The Spectra® T50e Tape Library is a compact workhorse. Whether it’s configured as a 4U rackmount or tabletop, It won’t let you down. You can use 10 to 50 slots and store up to 600TB (1.5PB compressed) of data. Utilizing up to 4 LTO drives, you can transfer data at 5.18TB/hr (10.8TB/hr compressed).* High performance at an economical price.

Capacity and Throughput

Technology

Max Drives

Max Cartridges

Max Capacity

Max Throughput

Encryption Support

LTO-8

4

50

600TB

(uncompressed)

1.5PB

(compressed)*

5.18TB/hr

(uncompressed)

10.08TB/hr

(compressed)

Yes

Environmental



LTO Drives and Media

Temperature

10’C to 40’C (50’F to 104’F)

Humidity

20 to 80%

Reliability

Library MTTR

3 minutes for hot-swap components. 30 minutes for non-hot-swap components

Power Requirements

4 LTO-8 Drives; 148 Watts AC (max operating) 200-240v AC (50/60Hz>/6.8-8.2 Amps (RMS)

Heat Dissipation: 506 BTU/hr (max operating, same configuration)

Library

Max Media/Slot Count

Max Partitions

Tape Technology Supported

Dimensions

Interface



50

4

LTO-4,5,6,7,7 Type M,8

31.6 in (D) x 17.5 in (W) x 7.3 in (H) (4U)

Fibre Channel – 8Gb/s, SAS



Library Weight

Base Chassis

84.0 lb (38.1 kg)



Weight with Max Drives and Max Inventory

102.0 lb (46.2 kg)



Library Features

Encryption Supported

BlueScale/Spectra SKLM

Type of TeraPack System

No TeraPacks

Queued Ejects Support

Yes

Auto Clean Support

Yes

Camera (Spectra Vision)

No

Spectra Encryption Options

Available

Cost

Spectra BlueScale Standard Encryption

X

Free

Spectra BlueScale Professional Encryption

X

Additional Charge

Spectra BlueScale SKLM Encryption

X

Additional Charge

For more on T50e

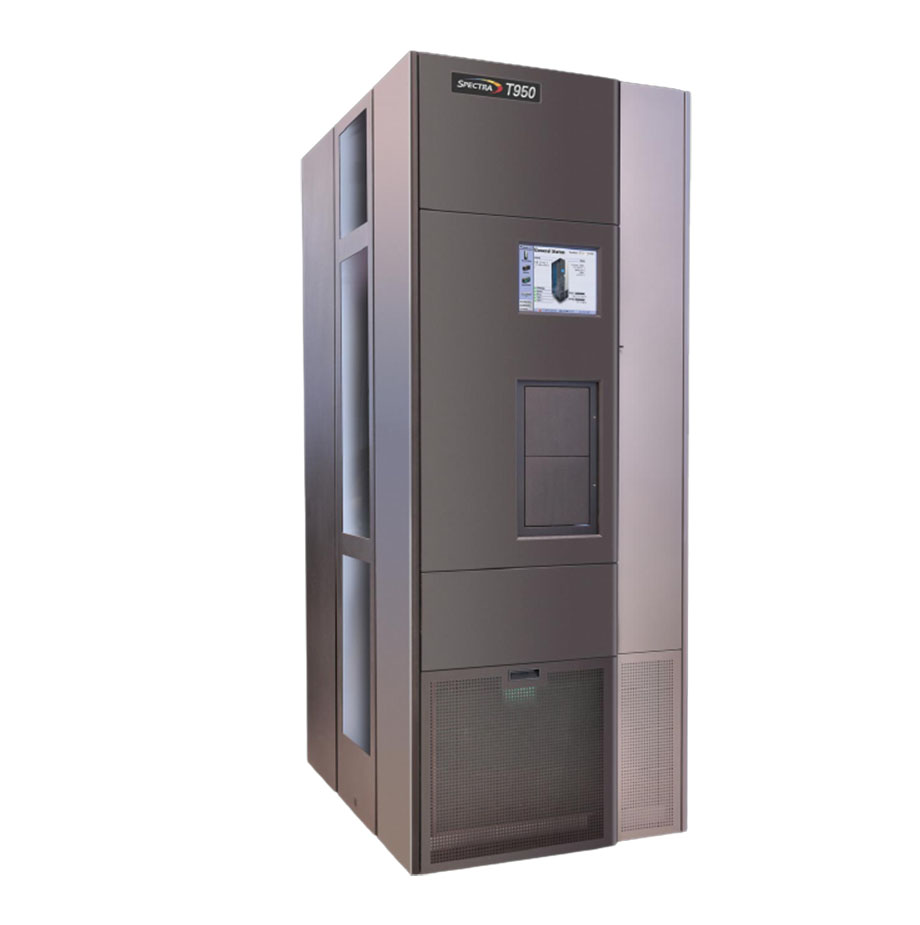

Spectra T950

The Spectra® T950 Tape Library leads the field in innovation, flexibility, performance and functionality, from its super high storage capacity to its proactive media management. Designed to meet the stringent requirements of the enterprise for data integrity, data security and high reliability, the T950 library reduces staff involvement and scales easily in capacity and throughput. From 50 to 10,020 LTO slots, you can store over 180PB (450PB compressed*) of data. With up to 120 drives you can transfer data up to 172TB/hr. (432TB/hr. compressed*) using LTO-9 tape technology.

The Spectra T950 provides maximum flexibility by allowing you to populate your library with LTO tape technology or IBM® TS11XX Enterprise Tape Technology, enabling you to choose the technology that is perfect for your business.


One Frame Capacity and Throughput

Technology

Max Drives

Max Cartridges

Max Capacity

Max Throughput

Encryption Support

LTO-9

24

920

16.5PB

(uncompressed)41.4PB

(compressed)*

34.56TB/hr

(uncompressed)86.4 TB/hr

(compressed)*

Yes

Environmental



LTO Drives and Media

TS Drives and Media

Temperature

10’C to 40’C (50’F to 104’F)

16’C to 32’C (60.8’F to 89.6’F)

Humidity

20 to 80%

20 to 80%

Reliability

Library MTTR

• 3 minutes for hot-swap components. 30 minutes for non-hot-swap components
• Mean Cycles Between Failures (MCBF): Over 2 million
• Mean Time Between Failures (MTBF): 250,000 power-on hours

Power Requirements

  • Base Frame and 24 LTO Drives; 1,275 Watts AC (max operating) 200-240v AC (50/60Hz>/6.8-8.2 Amps (RMS)
  • Heat Dissipation: 4,347 BTU/hr (max operating, same configuration)
  • Input Power: 8.2-6.8 Amps (RMS) at 200-240 VAC, 50/60 Hz (max.)
  • Heat Dissipation: 5,898 BTU/h (1 frame, 24 drives)

Library

Max Media/Slot Count

Max Partitions

Tape Technology Supported

10,020 (LTO)

16

LTO-4,5,6,7,7 Type M,8,9

7,614

16

TS1160, TS1155, TS1150

Library Features

Encryption Supported

BlueScale/Spectra SKLM

Type of TeraPack System

Roving TeraPack

Queued Ejects Support

Yes

Auto Clean Support

Yes

Camera (Spectra Vision)

Yes

Spectra Encryption Options

Available

Cost

Spectra BlueScale Standard Encryption

X

Free

Spectra BlueScale Professional Encryption

X

Additional Charge

Spectra BlueScale SKLM Encryption

X

Additional Charge

For more on Spectra T950

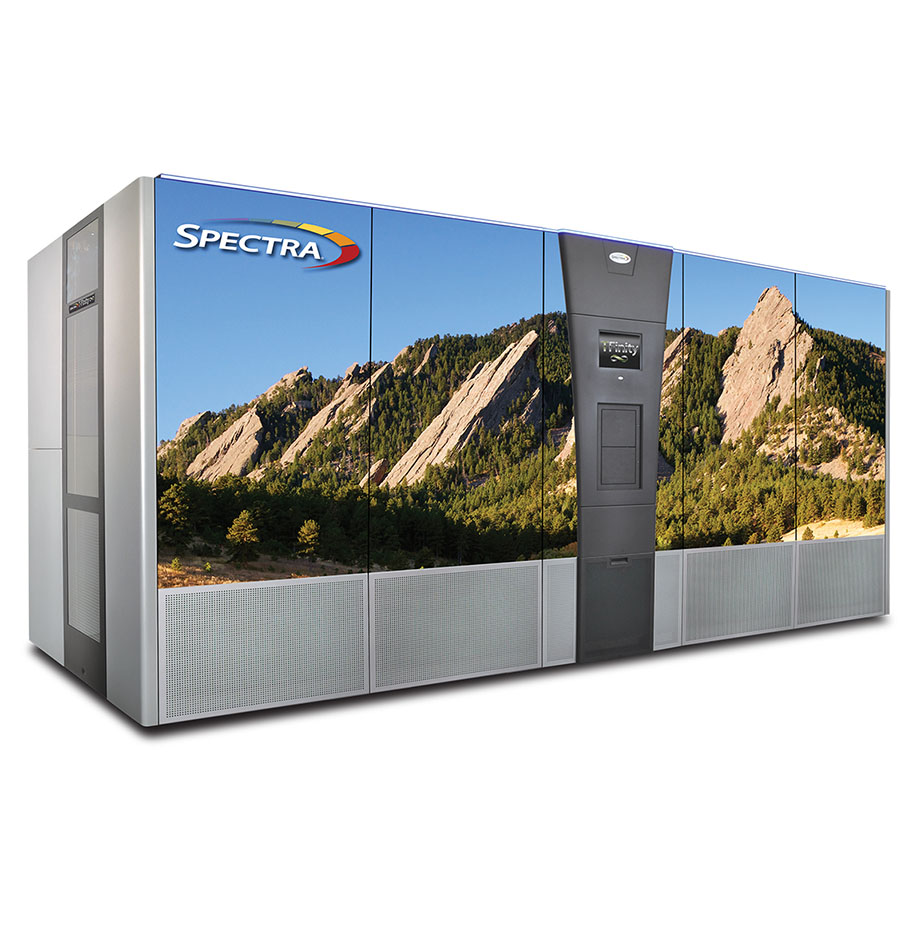

Spectra - TFInity Exascale

The World’s Highest Capacity Tape Library

With unsurpassed storage density packaged in the smallest footprint of any enterprise library on the market, the Spectra® TFinity® ExaScale offers industry-leading scalability with the speed necessary to meet requirements of the most demanding environments. From 100 to 56,400 LTO slots, you can store over 1EB (2.53EB compressed*) of data with LTO-9 tape technology. With up to 144 drives, you can transfer data up to 207.4TB/hr. (518TB/hr. compressed*) using LTO-9 tape technology.

Deployed by some of the most recognized organizations in the world, the Spectra TFinity ExaScale provides maximum flexibility by allowing you to select the tape technology that is the perfect fit for your business. In addition to LTO tape technology, the Spectra TFinity Exascale is also compatible with IBM® TS11X0 enterprise tape technology and Oracle® T10000x enterprise tape technology, enabling all three in the same library. Current Spectra customers can upgrade to the new ExaScale and enjoy its cutting-edge innovations.


Three Frame Capacity and Throughput

Technology

Max Drives

Max Cartridges

Max Capacity

Max Throughput

Encryption Support

LTO-9

24

1800

32.4PB
(uncompressed)81PB
(compressed)*

34.56TB/hr

(uncompressed)86.4 TB/hr

(compressed)*

Yes

Environmental



LTO Drives and Media

TS Drives and Media

Temperature

10’C to 40’C (50’F to 104’F)

16’C to 32’C (60.8’F to 89.6’F)

Humidity

20 to 80%

20 to 80%

Reliability

Library MCBF

3 million

Library MTTR

3 minutes for hot-swap components.30 minutes for non-hot-swap components

Power Requirements

Base Frame and 24 LTO Drives; 1,275 Watts AC (max operating) 200-240v AC (50/60Hz>/6.8-8.2 Amps (RMS)

Heat Dissipation: 4,347 BTU/hr (max operating, same configuration



Max Media/Slot Count (45 Frame)

Max Partitions

Tape Technology Supported

56,400 (LTO)

16

LTO-4,5,6,7,7 Type M,8,9

42,930

16

TS1160, TS1155, TS1150

42,930

16

T10000x

Library Features

Encryption Supported

BlueScale/Spectra SKLM

Type of TeraPack System

Roving TeraPack

Queued Ejects Support

Yes

Auto Clean Support

Yes

Camera (Spectra Vision)

Yes

Spectra Encryption Options

Available

Cost

Spectra BlueScale Standard Encryption

X

Free

Spectra BlueScale Professional Encryption

X

Additional Charge

Spectra BlueScale SKLM Encryption

X

Additional Charge


For More on TFinity ExaScale

For more on Spectra Products Go Here
